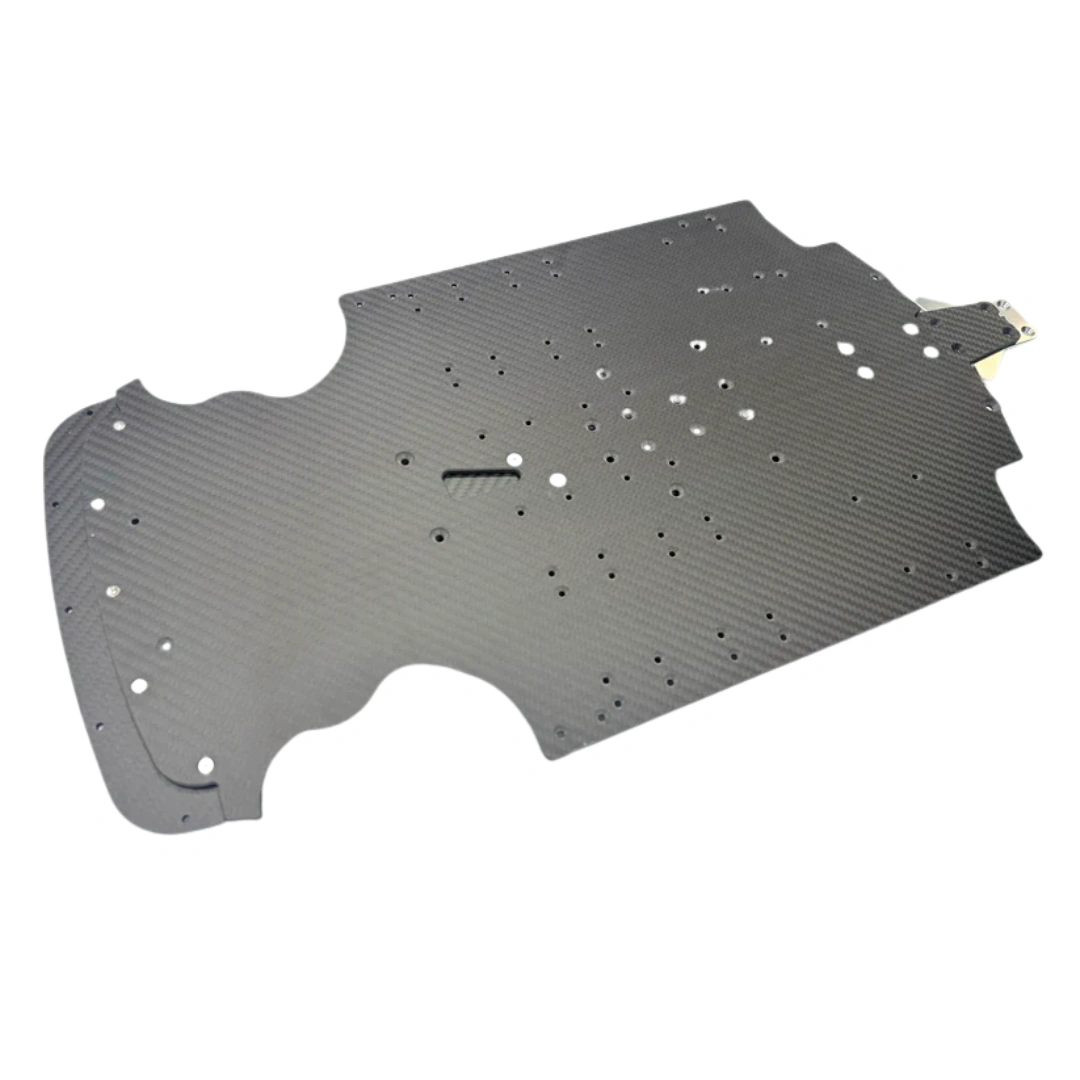

The Scorched RC carbon fiber full-length chassis SPC2-F is engineered for high-speed performance, featuring an extended front design to improve underbody aerodynamics and optimize battery and motor placement.
Features
- Extended front chassis design for improved aerodynamics and stability
- Pre-drilled for XLX2 ESC and optional HW Max5 ESC (minor adjustment required)
- Supports single or dual motor configurations with optimized rearward placement
- Constructed from 4mm top-quality Toray 3K carbon fibre for maximum stiffness
- Composite construction with 7075 T6 aluminum end pieces for enhanced load handling
- Precision machining ensures perfect fitment and a high-quality satin finish
- Correct chassis kick-up at the front maintains accurate steering geometry
- Three motor mounting options:
- Forward position – Compatible with Infraction V1/V2 and Limitless V1
- Middle position – Matches Limitless V2 specifications
- Rearward SPC2 position – Allows for larger motors (125mm+)
- Designed for use with the Scorched RC Top Deck Brace/Servo Mount kit
- Optional front splitter mount available in carbon fibre or high-mass stainless steel
Specifications
- Part number: SPC2-F
- Material: 4mm Toray 3K carbon fibre
- End sections: 7075 T6 aluminum
- Compatibility: Arrma Limitless, Infraction, Felony
- Finish: Satin
- Optional splitter mount weight: 214g (stainless steel)
Includes
- Scorched RC carbon fibre full-length chassis SPC2-F
- Optional front splitter mount (carbon fibre or stainless steel)
Important Notes
- Designed for use with the Scorched RC Top Deck Brace/Servo Mount kit
- Mark and drill additional components using masking tape for precision
- Proven performance tested at speeds of 220mph
