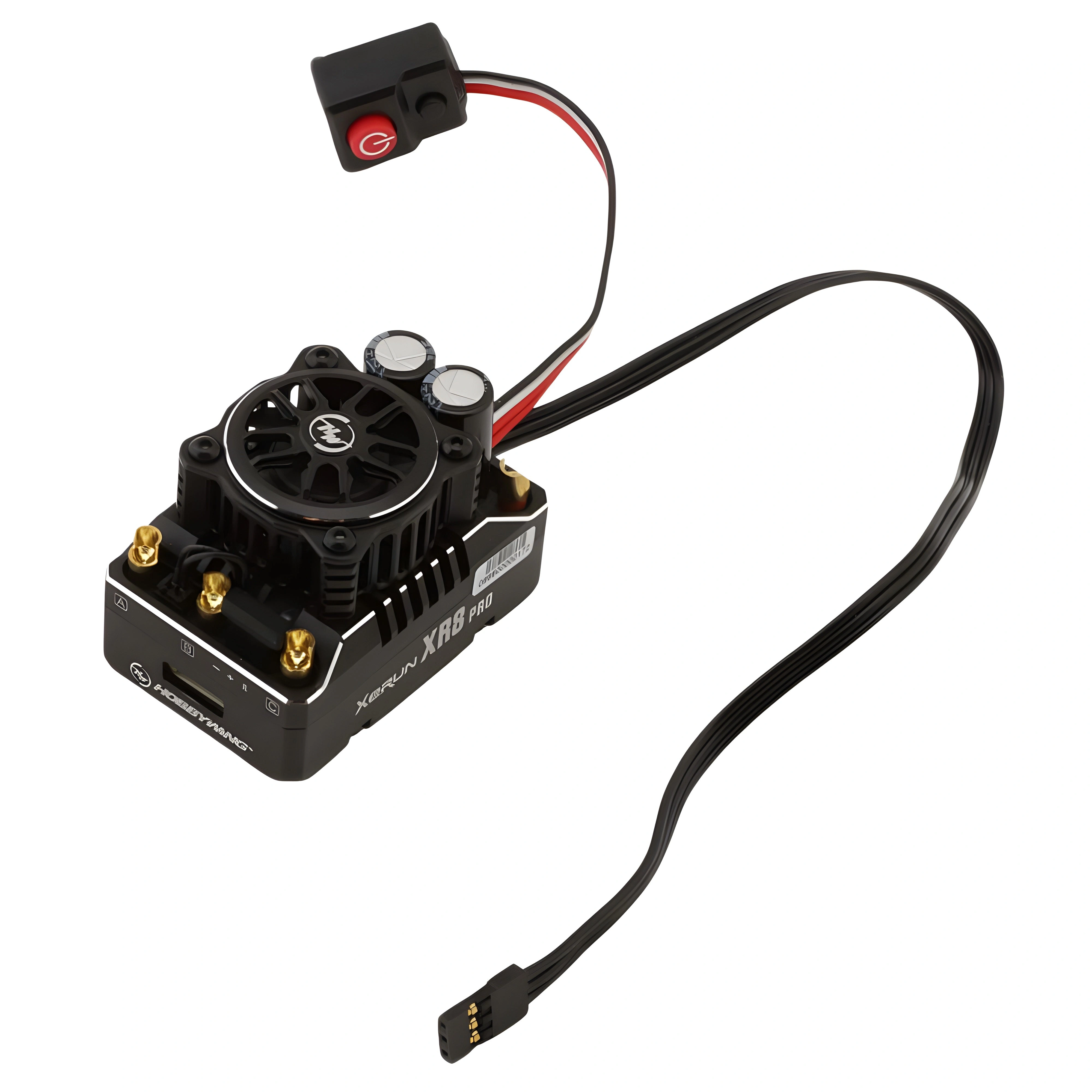

Hobbywing Xerun XR8 Pro G3 1/8 Competition Sensored Brushless Electronic Speed Controller. Loaded with cutting-edge technologies and features, this 1/8 competition ESC is designed to provide a higher level of performance and reliability for all competitive racers looking for the ultimate smooth control and supreme power you'd come to expect from Hobbywing! When combining this ESC with an optional 4268/4274 G3 motor, the maximum speed can be promoted by 50%. For added protection, this ESC is equipped with advanced thermal protection and reverse polarity protection. These advancements allow for an ESC that is designed to outperform the competition
NOTE: Use appropriate settings provided by the factory or team drivers. Check the operating temperature in order to maximize your electronics. The wrong settings may damage the ESC or motor.
Features
- Smart freewheeling technology enables the ESC to have higher drive efficiency and lower operating temperature
- Compared with the XR8 Pro G2, the maximum temperature is reduced by approximately 59F
- Dual brake mode
- Advanced Turbo and Boost timing technology
- Built-in reverse polarity protection circuit
- Real-time data recording function, easy to obtain power running status
- Capacitor thermal protection is designed and implemented into the ESC and will effectively prevent capacitors from exploding and causing irreversible damage to the ESC due to overload
- Superior dustproof protection
- Custom ultra-soft 11AWG silicone wire

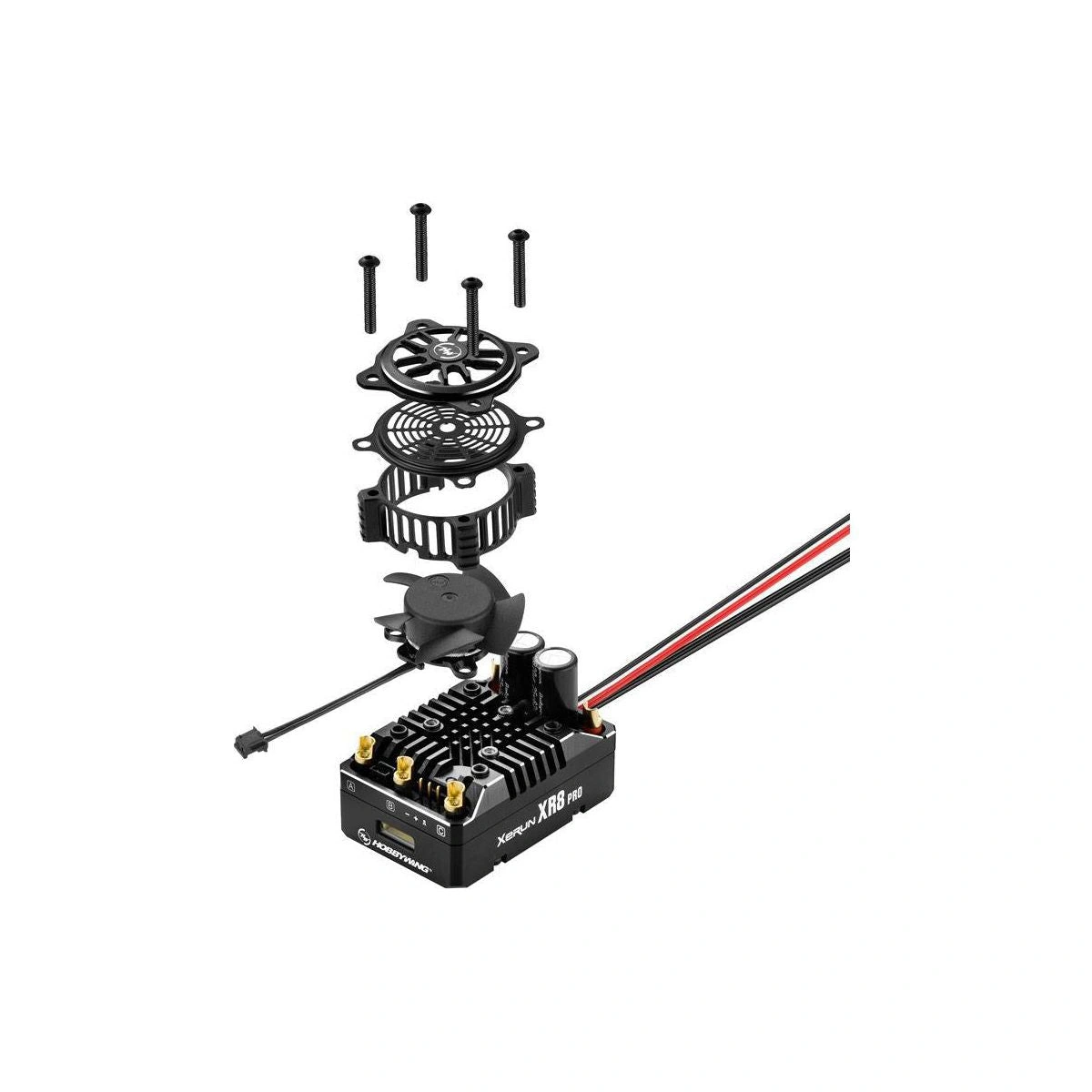

- Frameless fan blade is designed with specially formulated material to reduce the defective rate of the fan caused by impact from small stones, sand and other foreign objects
- Intelligent fan with noise reduction and power saving functions
Specifications
- ESC: Scale: 1/8
- Type: Brushless Sensored: Input Voltage: 2-4S LiPo
- BEC Output: 6V/7.4V Adjustable
- Continuous: 200A
- Peak: 1080A
- Motor Limit: 3S LiPo: KV= 4000 3660 Size motor / 4S LiPo: KV= 3000 4268 Size motor
- Braking mode: FOC/BLDC
- Programmable: Yes, Via OTA Programmer or LCD G2 Program Box
- Suitable applications: 1/8 Off-road, On-road Racing & 1/10th Short course & Monster truck
- Size(LxWxH): 54.8x38.8x36.8mm
- Weight: 102.8g

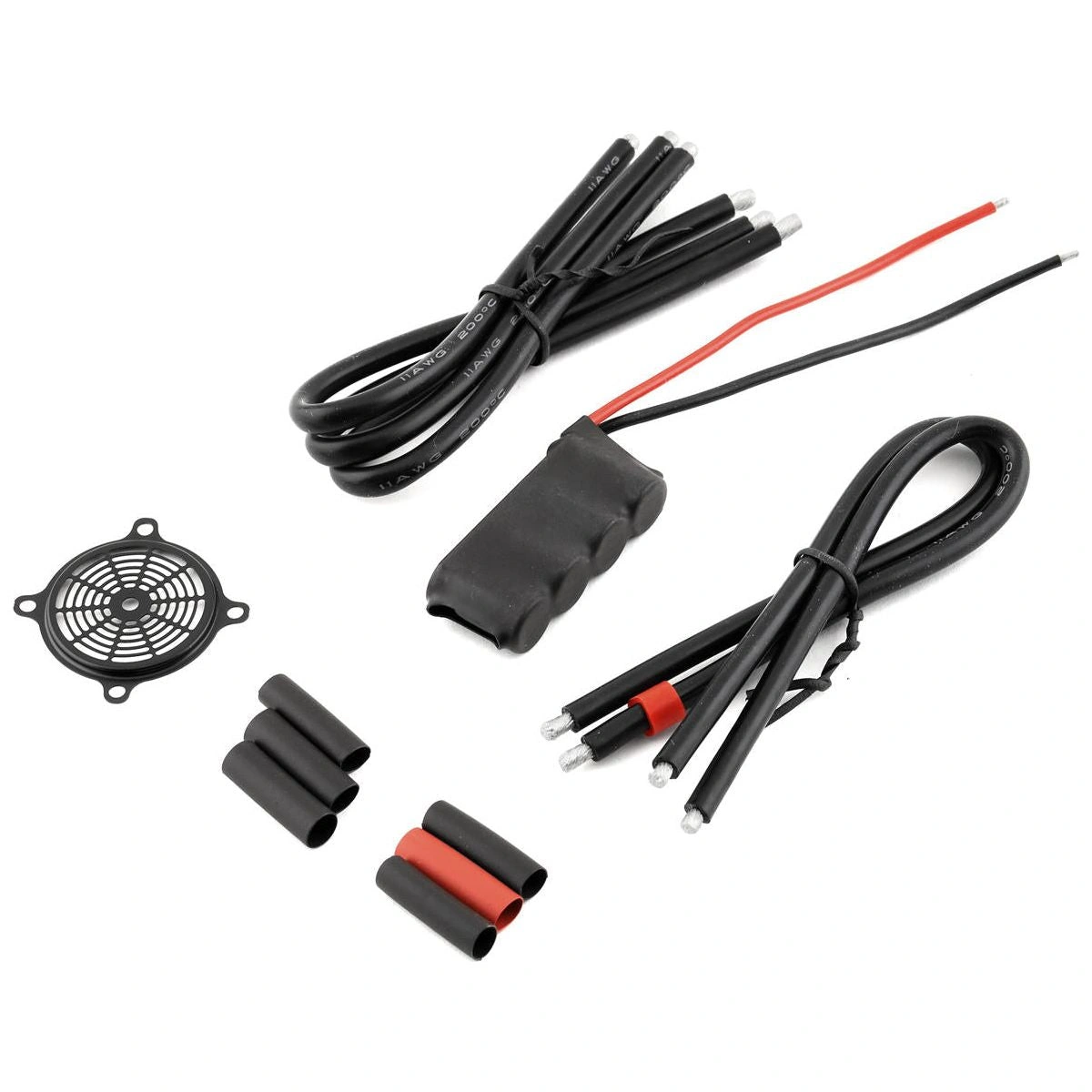

Includes
- (1) Xerun XR8 Pro G3 1/8 Competition Sensored Brushless ESC
- Factory Decals and Accessories
