Product Detail

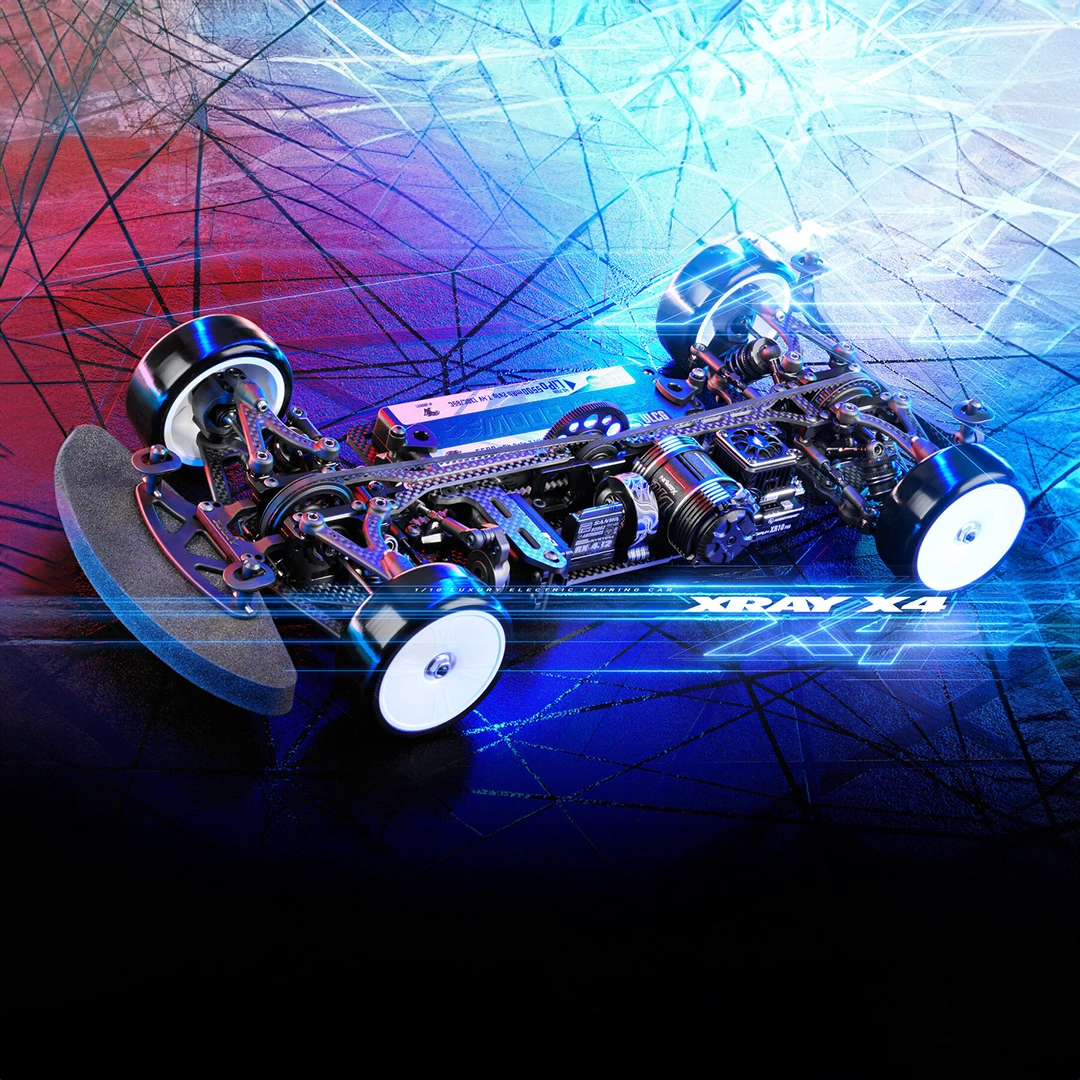

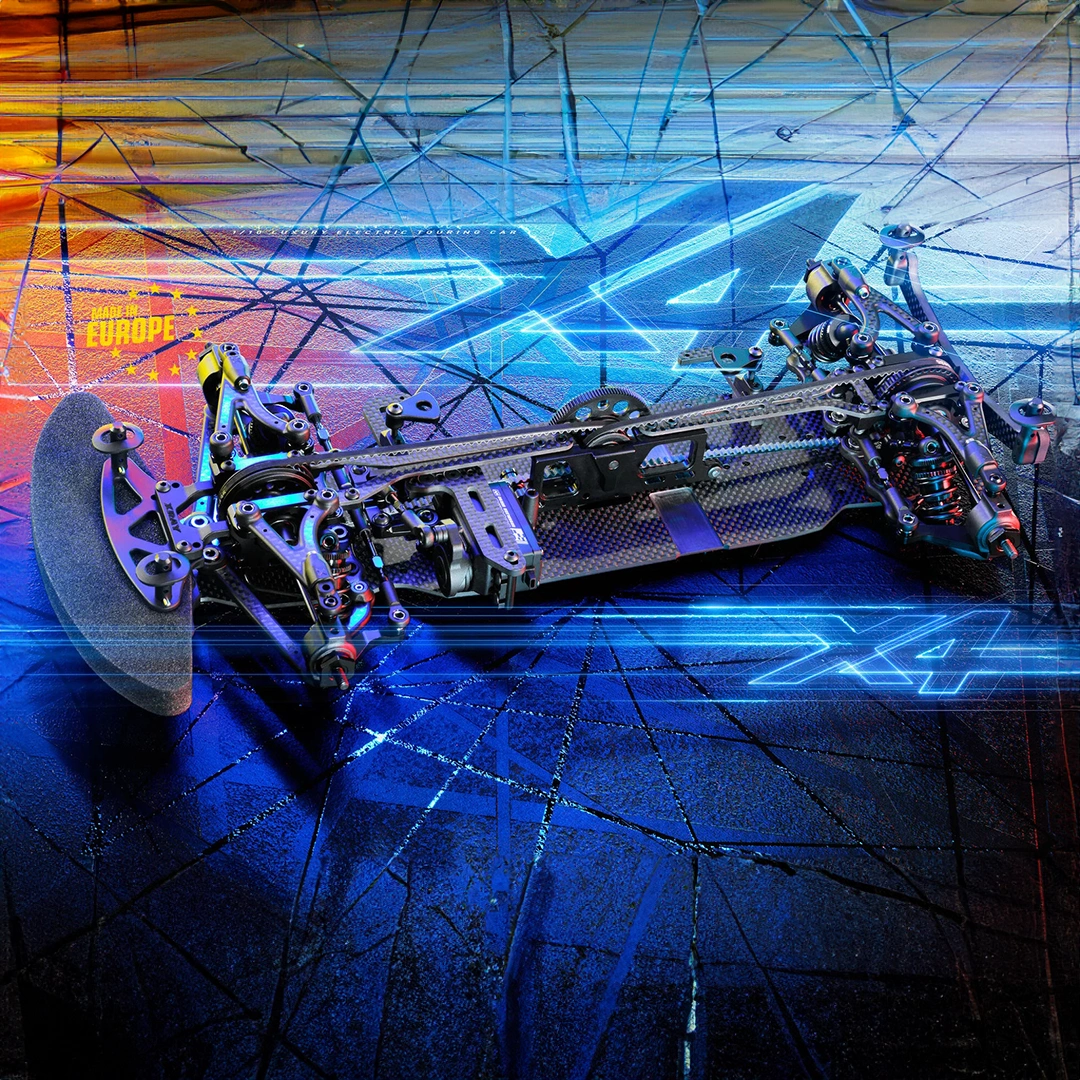

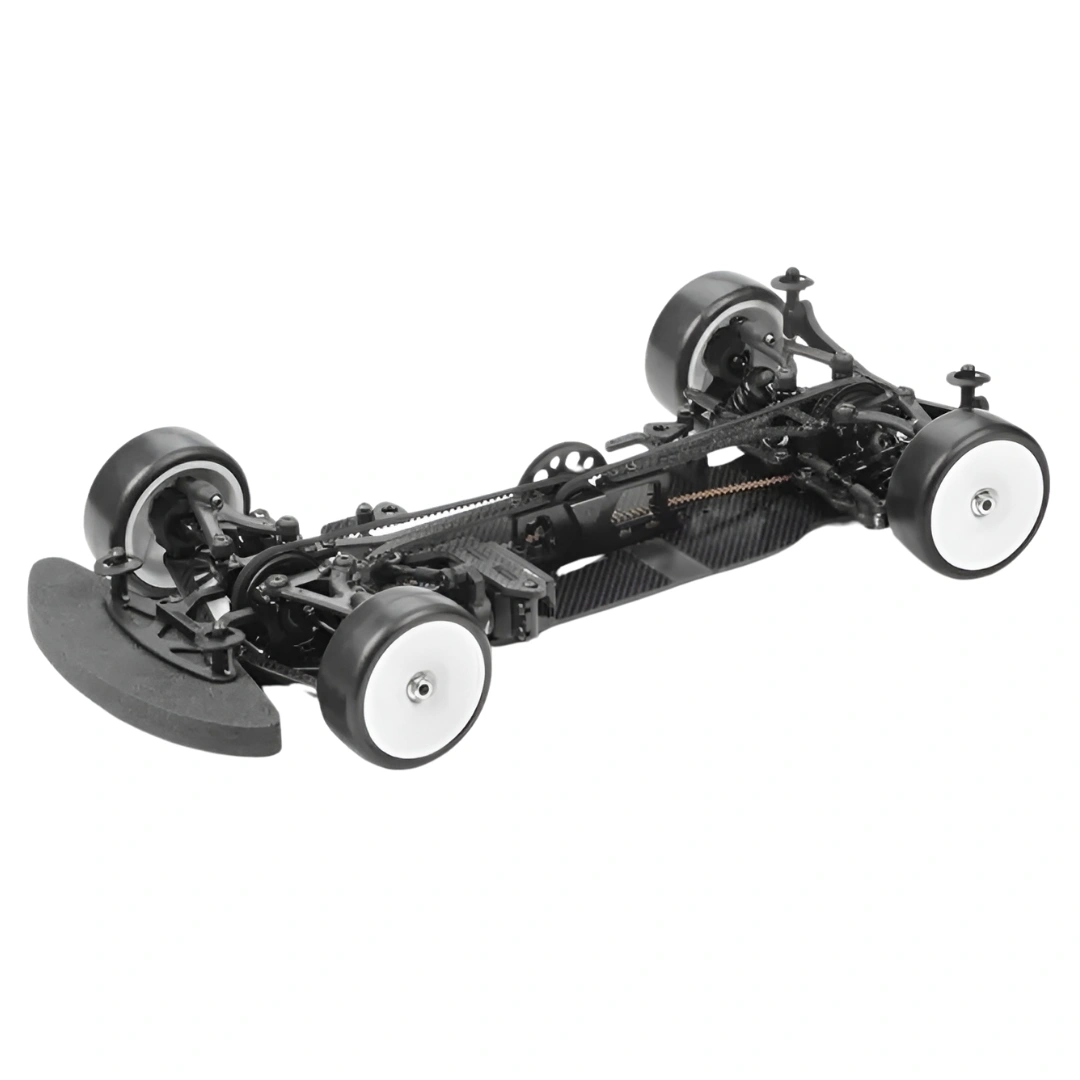

Xray X4 2024 Graphite Edition 1/10th Scale Luxury Electric RC Touring Car Kit 300038.

All New 2024 Features

• New suspension arms with relocated shock positions improve lower arm flex and reduce twist under load
• Inner shock locations improve weight distribution with the shocks closer to the vehicle midline
• Lower arms use under arm anti-roll bar mounting and reduce shock height by 4.5mm for ultra-low CG
• Upper arms are shaped for clearance around the new shock position while maintaining proper suspension geometry and rigidity
• Front and rear shock holders use shims to adjust shock positions in finer increments
• Three different shock holder mounting options provide chassis flex alternatives to tune responsiveness and grip
• Active or fixed rear shock holder configurations provide two dampening alternatives in one mount
• Simplified shock absorber installation uses a fixed set screw to secure the threaded shock mount stud and prevent movement in the mount during maintenance
• Front steering plates with improved Ackermann positions integrate with the new arms and shock positions
• Rear ARS plates move the link forward for improved rotation
• Improved ECS drive shaft case uses a C-clip to secure a new aluminum sleeve that captures the coupler pins without the use of set screws for improved reliability and easy assembly
• Narrower chassis design reduces cornering drag, while additional material in the central motor area improves durability and reduces chassis fatigue
