Tamiya Formula E RC Car 1/10 Scale TC-01 Kit 58681

Tamiya Formula E RC Racer Kit 1/10 Scale Electric Speed Machine

Unleash your inner wanderer with this vintage-inspired treasure a whisper of bygone eras reimagined for your modern adventures It's more than just a thing it's a feeling a story waiting to be lived—a little piece of magic to elevate your everyday.

$199.98 $399.95

num:

description

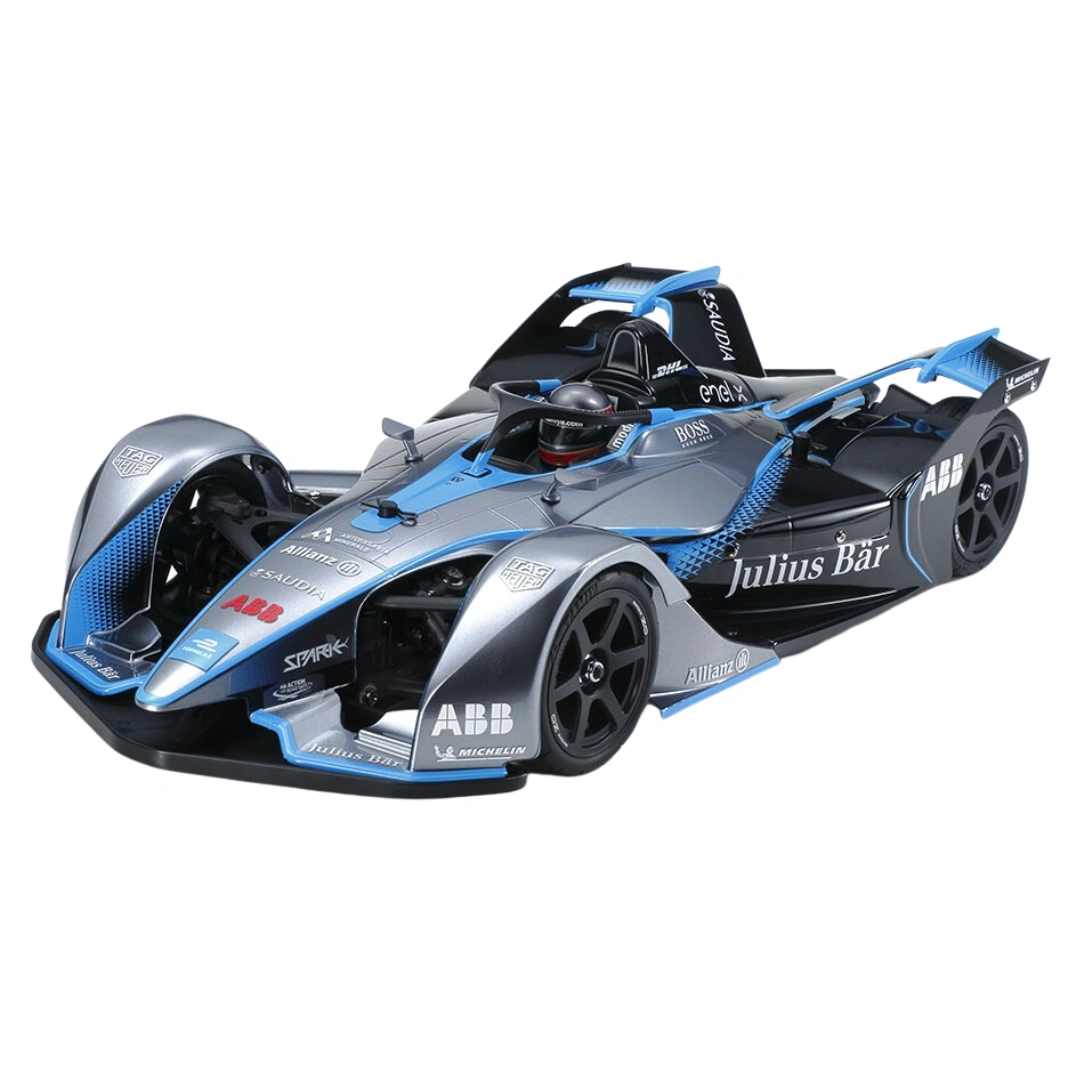

This RC model assembly kit recreates the GEN2 race car that is used in the Formula E world championship, the pinnacle of electric car racing. The sleek, high-tech body with arch covered wheels is recreated in polycarbonate. Halo, mirrors and rear diffuser/bumper are separately molded components. Markings are included to recreate the Championship Livery car, and the model is based upon the shaft-driven 4WD of the TC-01 chassis.

TC-01: Seriously Low-Profile

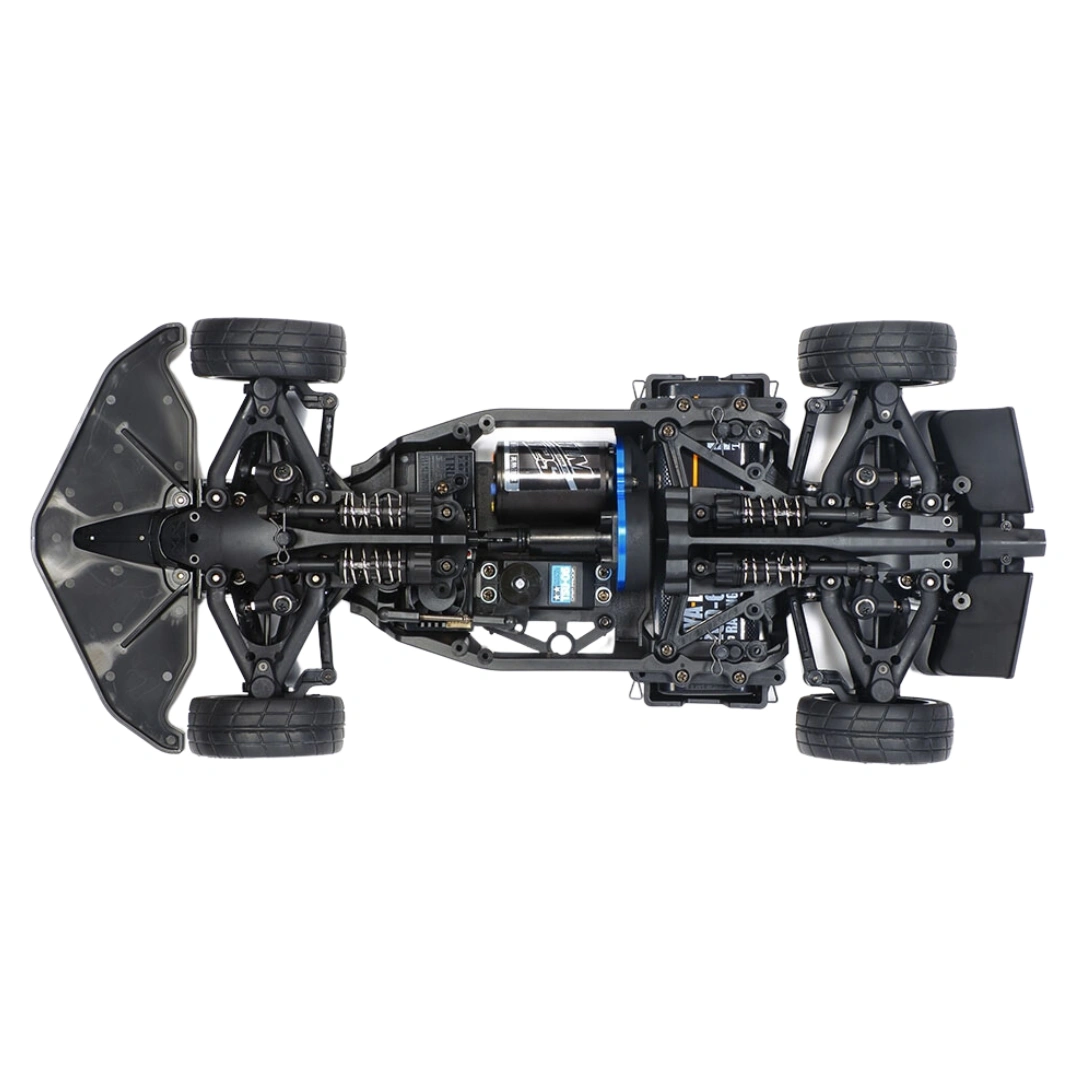

This durable composite monocoque-frame chassis provides shaft driven 4WD from a central motor via front and rear propeller shafts, with oil filled gear differentials. 4-wheel independent double wishbone suspension employs long arms, plus inboard setups front and rear with oil shock-dampers actuated by push rods and rocker arms to allow the use of low-profile bodies. Adjust spacer width to easily alter camber, skid and toe angle settings. Both suspension arms and uprights are identical left, right, front and rear, for more efficient maintenance and pit work.

Specifications

1/10 scale RC assembly kit
Length: 430mm, Width: 188mm, Height: 99mm
Wheelbase: 257mm
Tire Width/Diameter: 24/64mm (Front & Rear)
Composite Monocoque-Frame Chassis
Shaft-Driven 4WD
Front & Rear Oil-Filled Gear Differentials
3-Piece Steering Tie-Rod
Front & Rear Inboard 4-Wheel Independent Double Wishbone Suspension
CVA Oil Dampers (Front & Rear)
Gear Ratio = 6.56:1 (with kit 24T pinion)
Use of different spacers allows alteration of camber, caster and toe angles for maximum freedom of setup.
Change bumpers and body mounts to switch between formula and touring car layouts.
The shaft-driven 4WD layout uses TB-05 design oil-filled gear differentials for smooth, efficient drive performance.
Polycarbonate body
Halo and mirror components are molded in white ABS.
In addition to the unique Formula E Gen2 body, this chassis is compatible with standard touring car measurement bodies. Wheelbase: 257mm.
Stickers are included to recreate the championship car livery.
Compatible with IFMAR standard “square-shape” dimension battery packs.

Required

Transmitter & receiver
Servo
ESC
7.2-7.4v battery pack with compatible charger
Tools to assemble
Tamiya PS paint for polycarbonate body and Tamiya TS paint for ABS plastic parts.
